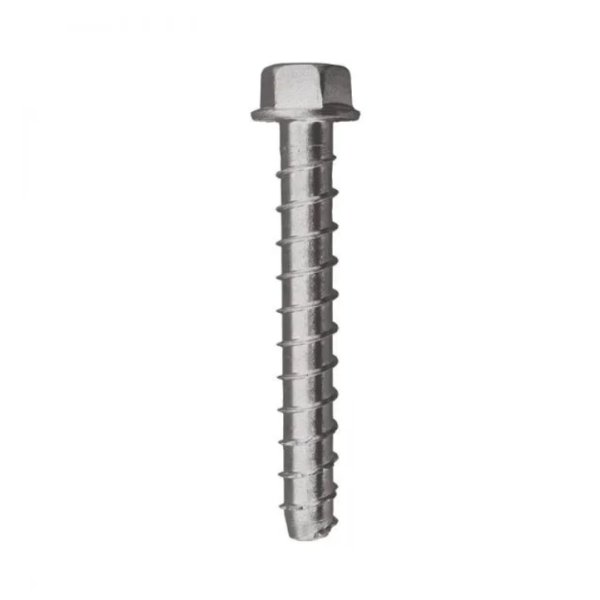

Titen Concrete Anchor Galvanized Screw Bolt M16 x 150

by SIMPSON STRONG-TIE
SIMPSON STRONG-TIE
KP#:
THD16150MG
$8.28 $7.20 $8.28

Description

During installation, the innovative serrated carbon-steel threads on the tip of the Titen HD are vital because they undercut the concrete as the anchor is driven into the hole, making way for the rest of the threads to interlock with the concrete.
The result is a continuous mechanical interlock between the anchor and base material that requires little installation torque and offers outstanding performance
Complies with AS5220
Specialised Heat-treatment process creates tip hardness to facilitate cutting while the anchor body remains ductile
With high ductility it can be bent to a right angle and remain intact without snapping or breakage
Hex -Washer Head increases bearing surface and requires no separate washer, unless required by specification and provides a clean installed appearance

Specifications

  • Konnect Part THD16150MG
  • UOM Each
  • Fastener Category Anchors
  • Fastener Diameter 16.0mm
  • Fastener Finish Hot Dip Galvanised
  • Fastener Head Type Hex Head
  • Fastener Length 150mm
  • Fastener Material Steel
  • Fastener Type Screw Bolt
  • Brand SIMPSON STRONG-TIE
